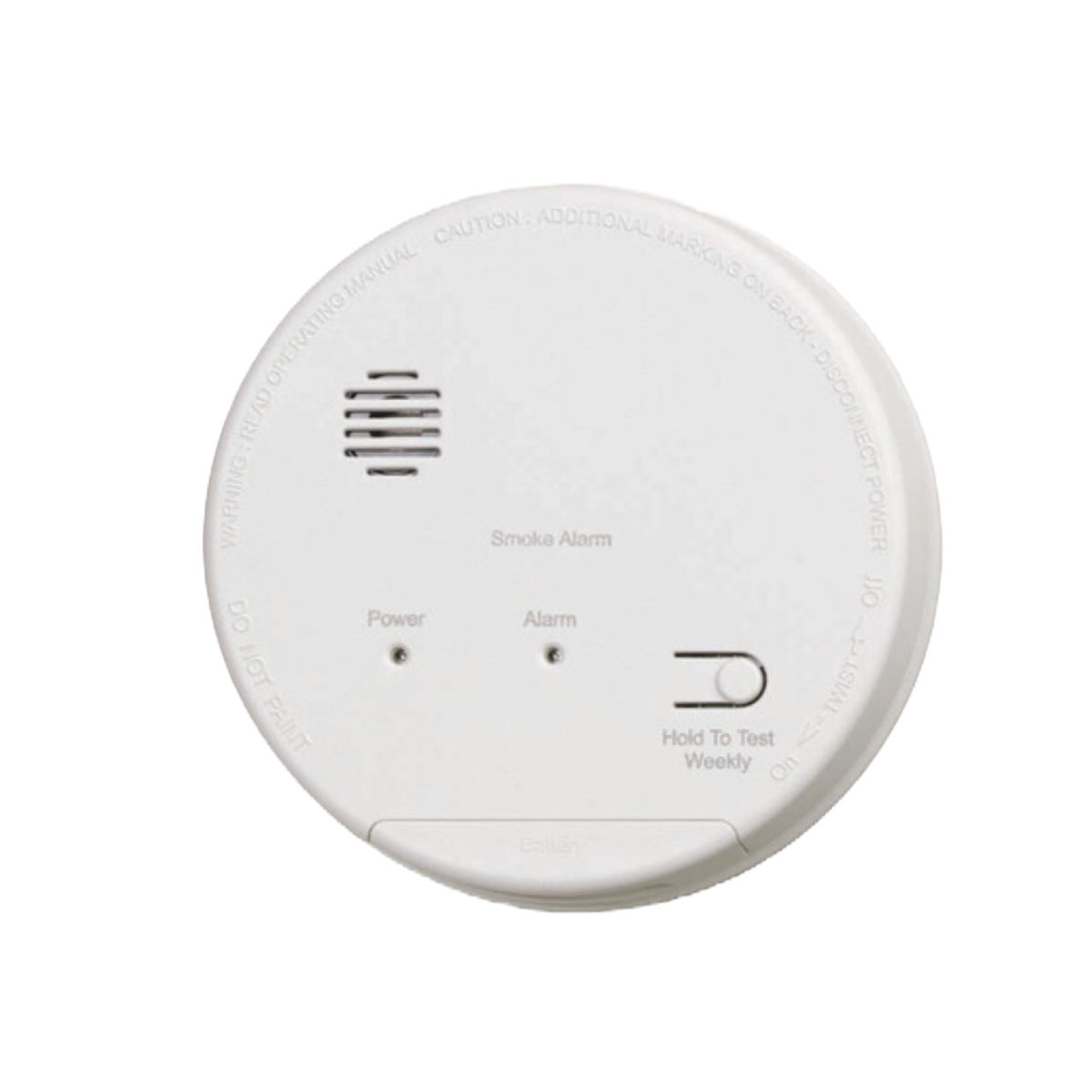

Contact Type Smoke Detector Sensor for 220-VAC
Smoke Detection
• 220 VAC with 9V battery back-up Photoelectric smoke sensing technology
• Horn frequency 3100 Hz (nominal)
• Temporal 3 evacuation piezo horn
• Nominal 2.5% sensitivity
• Push button self test feature, verifies power sources/operation
• Push and hold button functional test feature, analyzes sensing chamber
• Optional Auxiliary Form A/Form C relay contacts (F model)
• Relay contacts operate when on battery back-up
• Quick-disconnect wiring harness
• DUALINK® - tandem with all Gentex tandem capable alarms
• Non-latching (self restoring) alarm
• LED for AC power on
• Red LED pulses every 30 seconds, green
• Solid state red LED to indicate smoke presence
• Smoke sensing chamber is fully insect screened
• Mounting hardware adapts to standard junction boxes
• Dust cover to prevent particle contamination during installation
• Low or missing battery indicator
• One year warranty from date of purchase
• Connect up to twelve smoke detector sensors to one Sensaphone input
The Smoke Detector with battery backup and built-in relay utilizes a photoelectric sensing method and is designed for use in commercial and residential applications. The detector features two sets of dry alarm contacts: one form-A SPST and one form-C SPDT. The detector has tandem interconnect capability allowing up to 12 devices to be connected together. A 85dBA audible horn is included. The smoke detector can be used with all Sensaphone models.
Currency: US Dollar - USD ($)
The price do not include shipping charges, other taxes, and duties.
Tech Specs
Operating Temperature 40° to 100°F | 4°C to 37°C Operating Voltage 220VAC, 60Hz Operating Current 0.045 amps Dimensions 6.25 diameter x 1.8 | 72mm x 40mm Operating Current (Relay Options) 0.070 amps Alarm Horn Rating Meets or exceeds 85dBA at 10’ Nominal Sensitivity 2.5% obscuration “F” Auxiliary Relay 1 Form A and 1 Form C (0.6 amp) Secondary Power Source Alkaline 9V battery, Duracell® MN 1604 Item Number
FGD-0049-220V
