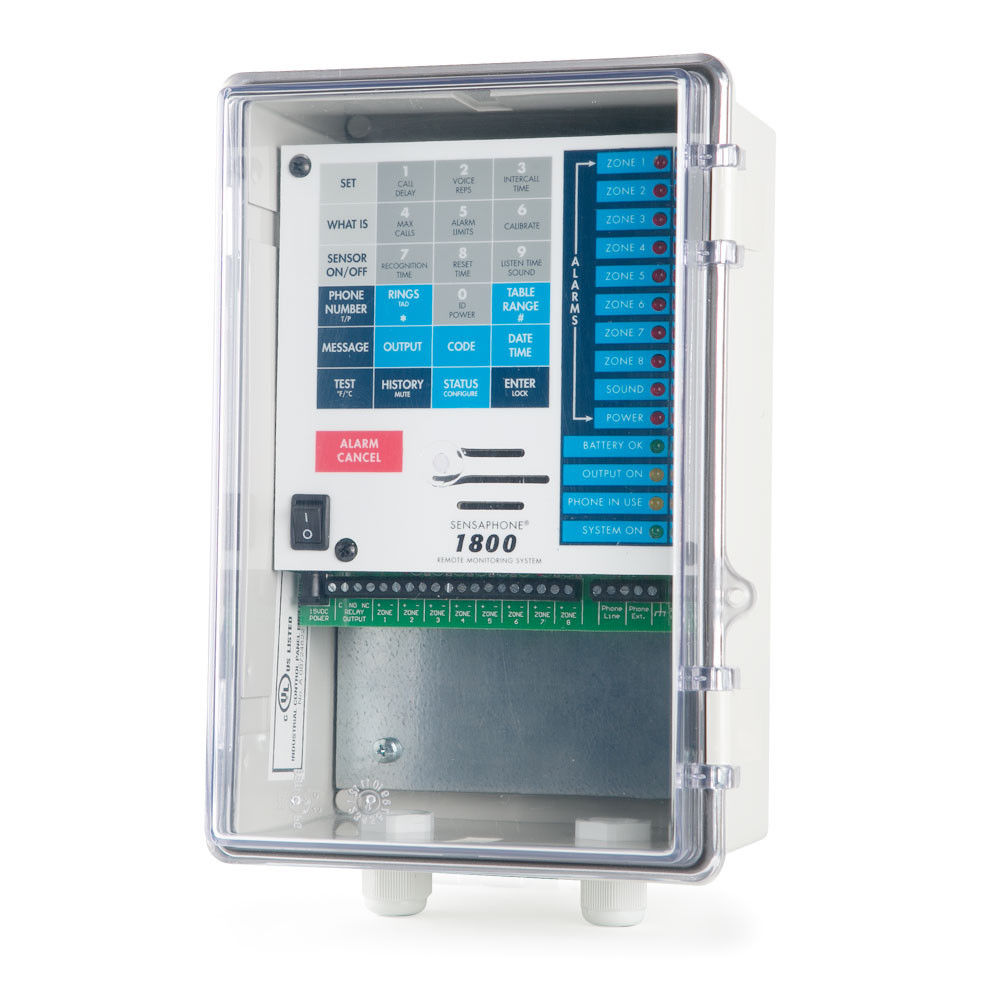

Sensaphone 1800 Monitoring System
Alarm Auto Dialer Ensures 24/7 Monitoring
- Simple, convenient, cost-effective remote monitoring ideal for greenhouse and agriculture applications
- Rugged, weatherproof NEMA-4X enclosure offers protection in harsh environments
- Receive voice alerts and alarm notifications over standard telephone lines
- Auto dialer: Notifies up to eight people by voice phone call in the event of an alarm
- Up to eight external sensors monitor temperature, humidity, water and more
- Included relay output can switch local devices on/off based on alarm activity
- Temperature-sensing range of -109° to -168°F | -85° to -76°C
- Record custom voice alerts and receive alarm messages in your own voice
- Made in USA
The Sensaphone 1800 Monitoring Systems offer an easy and inexpensive way to monitor up to eight inputs under the harshest conditions. Commonly called auto dialers, these systems notify you if they sense undesirable temperatures or other conditions. You can record custom alerts and receive alarm messages in your own voice.
In addition to dry contact, 2.8K, and 10K thermistor inputs, 4-20mA support allows for third-party sensor integration. Nonvolatile memory retains system settings, programming, and even logs in the event of power failure. You can call in by phone to get the status of each monitored condition.
- INCLUDED: Internal battery backup system provides 24 hours of continuous monitoring and alerts in the event of a power outage
- INCLUDED: One weatherproof temperature sensor
- INCLUDED: Power failure monitoring
- NO MONTHLY FEES: unlike other systems that require subscriptions
Tech Specs
Communication Method:
Phone Line
Number of Inputs:
8
Input Types:
Contact, 2.8k, 10k , 4-20mA
Temperature Sensing Range:
-109° to 168°F | -85° to 76°C
Output Relay:
One universal input relay
Manual or automatic alarm switchingRemote Access:
Call in to check status and make programming changes
Microphone for listen in statusLocal Access:
Keypad and speaker for local programming
Easy voice prompted programming
Password Protected
Recent alarm history playback
LEDsAlarm Notification:
Eight custom voice phone calls
Power Supply:
Plug in power supply also monitors for power failures
Internal battery backupPhysical:
1800: 8.0 x 12.3 x 5.6 | 203 x 312 x 142mm 6lbs | 2.72kg
Warranty:
2 Years
Enclosure
Solid Door Enclosure:
ABS/PC Blended Plastic, UL94-5VB Flammability rating, NEMA Type 1, 2, 3, 3R, 4, 4X, 12 & 13, IEC529, IP66
Clear Door Enclosure:
ABS/PC blended plastic, UL945VB flammability rating; UV stabilized. NEMA Type 1, 2, 3, 3R, 4, 4X, 12 &13, IEC529IP65Standards:
FCC Part 15 Class A, USA Emission Standards
FCC Part 68 (47 C.F.R. Part 68), USA Telecommunications Standards
ICES-003 Issue 4 Class A, Canadian Emission Standards
Complies with CS-03 Issue 8, Canadian Telecommunications Standards
NRTL Listed for compliance to UL/CSA 62368-1 Safety StandardsBattery Backup Time:
24 hours
